Fast DP: Fast Data Processing with XDS

Introduction

The Fast DP environment is a lightweight, command-line–focused workspace for macromolecular crystallography (MX) data processing and rapid downstream analysis. It is designed for users who want to run fast_dp and related tooling in a reproducible container setup, while still having access to commonly used MX utilities for inspection, plotting, and scripting.

The environment is built on Ubuntu 24.04 and combines:

Fast DP (via conda) for fast automated processing and summary output,
CCTBX components (via cctbx-base) for crystallographic functionality used by fast_dp and related tools,
XDS tools for integration workflows and supporting utilities,
CCP4 command-line tools (GUI components removed) for standard MX utilities,
PyMOL for structure visualization,
common Python libraries for scripting and plotting (numpy, matplotlib, pandas, h5py, hdf5plugin).

This environment is primarily intended for scripted and automated workflows, in particular DECTRIS CLOUD job templates.

Environment configuration

Installation directories

Key software components are installed in fixed locations inside the container:

Conda (Miniconda):
/opt/conda/
fast_dp conda environment:
/opt/conda/envs/fastdp/
This conda environment contains:
- fast_dp
- CCTBX components (via cctbx-base)
- Python (3.11)
- Scientific Python stack (numpy, matplotlib, pandas, h5py, hdf5plugin)
CCTBX (via conda):
Installed inside the fastdp conda environment at:
/opt/conda/envs/fastdp/
CCTBX libraries, binaries, and Python modules are available automatically when the fastdp environment is on PATH. No separate CCTBX installation directory is used.
XDS:
/opt/xds/
Includes:
- xds, xds_par
- helper scripts such as generate_XDS.INP
- HDF5 plugins:
  - /opt/xds/dectris-neggia.so
  - /opt/xds/durin-plugin.so
CCP4 (command-line):
/opt/ccp4/
CCP4 is installed without GUI components and is intended for command-line use and scripting.

PATH and CCP4 setup

Interactive shells are configured to automatically:

prepend the following directories to PATH:
- /opt/conda/envs/fastdp/bin
- /opt/conda/bin
- /opt/xds
source the CCP4 environment:
- . /opt/ccp4/bin/ccp4.setup-sh
This configuration is applied via:
- /etc/profile.d/fastdp-path.sh
- /etc/bash.bashrc

As a result, tools such as fast_dp, CCTBX utilities, XDS programs, and CCP4 binaries are available immediately in interactive terminals.

Usage Examples

Running fast_dp command

Due to the configuration of the PATH variable, the fast_dp command can be immediately run with a path to a dataset inside a terminal:

fast_dp /path/to/data

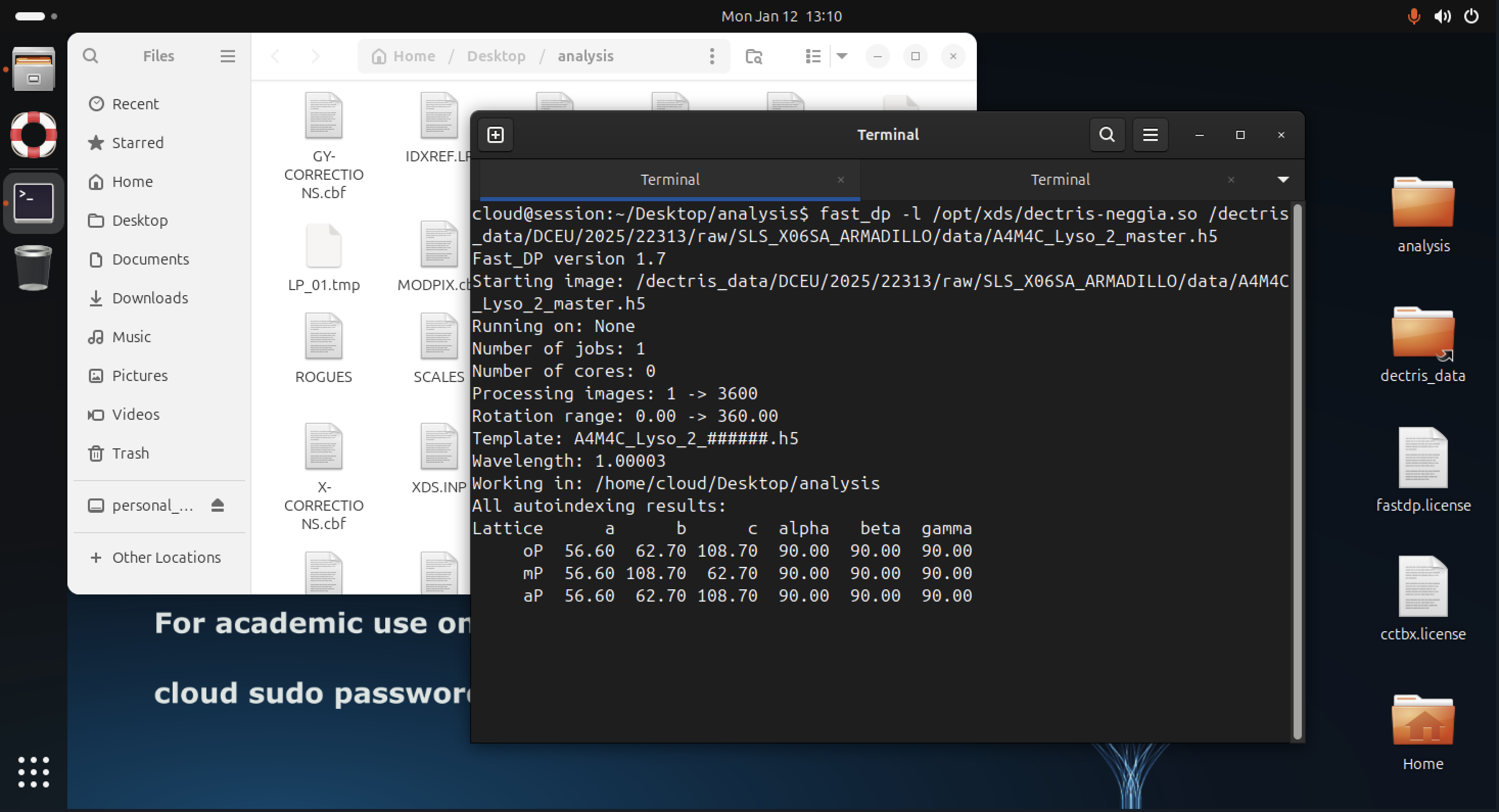

For HDF5 / NeXus input (for example EIGER detector data), one can specify a path to the DECTRIS HDF5 reader plugin:

fast_dp -l /opt/xds/dectris-neggia.so /path/to/data.h5

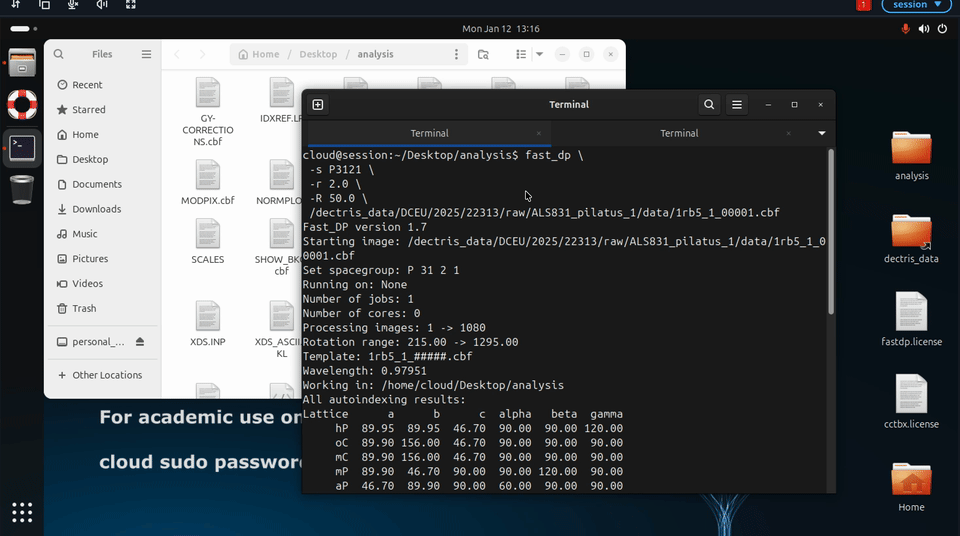

Additional fast_dp options may also be specified explicitly, for example to constrain space group or resolution:

fast_dp \
 -s P212121 \
 -r 2.0 \
 -R 50.0 \
 /path/to/data

Using CCTBX for inspection and scripting

You can access CCTBX functionality from Python, for example to inspect reflection data in an MTZ file produced by fast_dp:

python3

from iotbx import reflection_file_reader

mtz = reflection_file_reader.any_reflection_file("fast_dp.mtz")
arrays = mtz.as_miller_arrays()
for arr in arrays:
    print(arr.info().label_string())

In the example above, the column labels contained in the MTZ file are printed. This pattern can be extended in Python scripts or job templates to compute statistics, inspect resolution limits, or prepare input files for downstream processing.

Configuring job templates

Job templates run in non-interactive shells and should therefore configure their environment explicitly.

At the start of your script:

# Load CCP4 command-line environment
source /opt/ccp4/bin/ccp4.setup-sh

# Make fast_dp, CCTBX, and XDS tools available export PATH="/opt/conda/envs/fastdp/bin:/opt/conda/bin:/opt/xds:$PATH"

This ensures that:

fast_dp and the associated CCTBX Python modules are available,
XDS command-line tools (e.g. xds, xds_par) are on PATH,
CCP4 programs (e.g. ctruncate, pointless) can be invoked directly.

Public Job Templates

Version History

Version 1

Changes compared to Version 0:
- Added libquadmath0 to the runtime image to ensure compatibility with XDS-based workflows.
- No changes were made to the installed software versions.

Version 0

Initial release of the Fast DP command-line environment, including:
- XDS: VERSION Jan 19, 2025 (BUILT=20250714)
- CCP4: software suite version 9.0.011 (patch level 9.0.011)
- CCTBX: version 2024.2 (via cctbx-base conda package)
- PyMOL: version 3.0.0

References

XDS

XDS program package: https://xds.mr.mpg.de/
XDS references: https://xds.mr.mpg.de/html_doc/references.html
XDS wiki: https://wiki.uni-konstanz.de/xds/index.php/Main_Page

CCP4

CCP4 page: https://www.ccp4.ac.uk/
CCP4 wiki: https://wiki.uni-konstanz.de/ccp4/index.php/Main_Page
General CCP4 program reference: J. Agirre et al. Acta. Cryst. D79, 449-461 (2023) “The CCP4 suite: integrative software for macromolecular crystallography” [doi:10.1107/S2059798323003595]
Specific CCP4 program reference info: https://www.ccp4.ac.uk/ccp4-v7-0-program-references/

PyMOL

PyMOL page: https://pymol.org/
PyMOL wiki: https://pymolwiki.org/index.php/Main_Page
PyMOL citation info (bottom of page): https://www.pymol.org/support.html?

CCTBX

CCTBX socumentation: https://cci.lbl.gov/docs/cctbx/
CCTBX github: https://github.com/cctbx/cctbx_project
CCTBX reference: Grosse-Kunstleve, R.W., Sauter, N.K., Moriarty, N.W. and Adams, P.D., 2002. The Computational Crystallography Toolbox: crystallographic algorithms in a reusable software framework. Applied Crystallography, 35(1), pp.126-136. https://doi.org/10.1107/S0021889801017824

Fast DP

Fast DP github: https://github.com/DiamondLightSource/fast_dp
Fast DP reference: Winter, G. & McAuley, K. E. "Automated data collection for macromolecular crystallography." Methods 55, 81-93 (2011).
