GSAS-II

Introduction

The GSAS-II environment contains the full GSAS-II graphical suite pre-installed on an Ubuntu desktop. Use it to:

• Import and visualise X-ray or neutron powder / single-crystal diffraction patterns
• Perform Rietveld refinement, Pawley fits, PDF analysis, texture, size–strain and more
• Plot difference curves, reciprocal-space maps and peak statistics.

Environment configuration

Installation directories

• GSAS-II is installed in /home/cloud/g2main.
• Python dependencies are installed in the base Conda environment. This can be activated from the terminal using the command:

conda activate base

Usage example

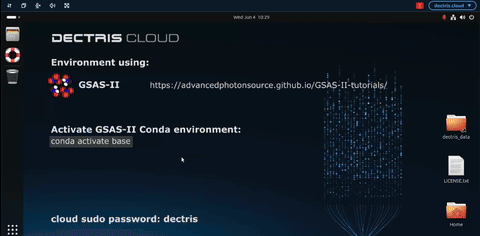

Launch GSAS-II by clicking on the icon in the Ubuntu application launcher:

It is also possible to launch the program from the terminal, using the following command:

/home/cloud/g2main/RunGSASII.sh

Version history

Version 0

• Initial installation of GSAS-II (Binary version 5805, v5.2.0)

References

1. GSAS-II page: https://advancedphotonsource.github.io/GSAS-II-tutorials/
2. GSAS-II open source license: https://raw.githubusercontent.com/AdvancedPhotonSource/GSAS-II/master/LICENSE
3. Citation: Toby, B. H., & Von Dreele, R. B. (2013). “GSAS-II: the genesis of a modern open-source all purpose crystallography software package”. Journal of Applied Crystallography, 46(2), 544-549. doi:10.1107/S0021889813003531
